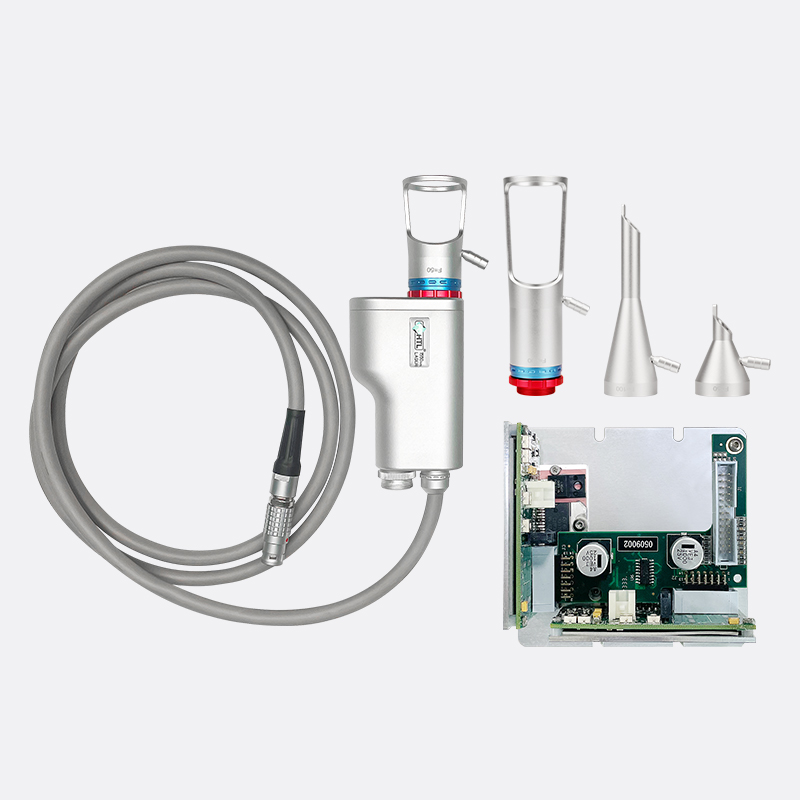

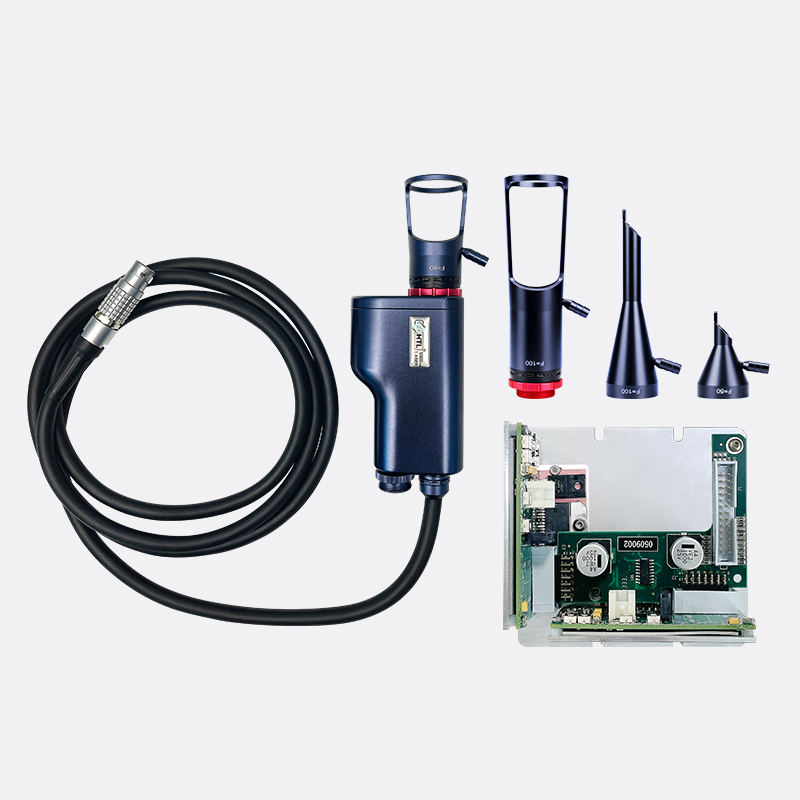

The complete CO2 fractional laser system includes:
● Control System (Galvo Scanner, Display Screen, Main Controller, Driver, Power Supply)
● Articulated Laser Arm
● Laser Glass Tube (Optional)
● Laser Power Supply (Optional）
● Floor-Standing Stand
● Nonlinearity: <3.5 mrad/44°
● 1% Full-Scale Step Response Time: ≤0.60 ms
● Tracking Error Time: 0.26 ms
● Gain Drift: <80 PPM/K
● Zero Offset Drift: <20 μRad/℃
(after 30 min warm-up) Long-term drift (8H): <0.4 mrad
● Long-Term Drift (after 30 min warm-up, 8H): <0.4 mrad
● Repeatability: <20 μRad
● Typical Scan Angle: ±0.35 rad
● Positioning Resolution: 40 μRad
● Lens Specification (Reflection Wavelength (nm)): 10600
● Power Requirements: ±15 VDC, max 2A per channel
● Aperture: 5 mm
● Operating Temperature: 25℃ ±10℃
