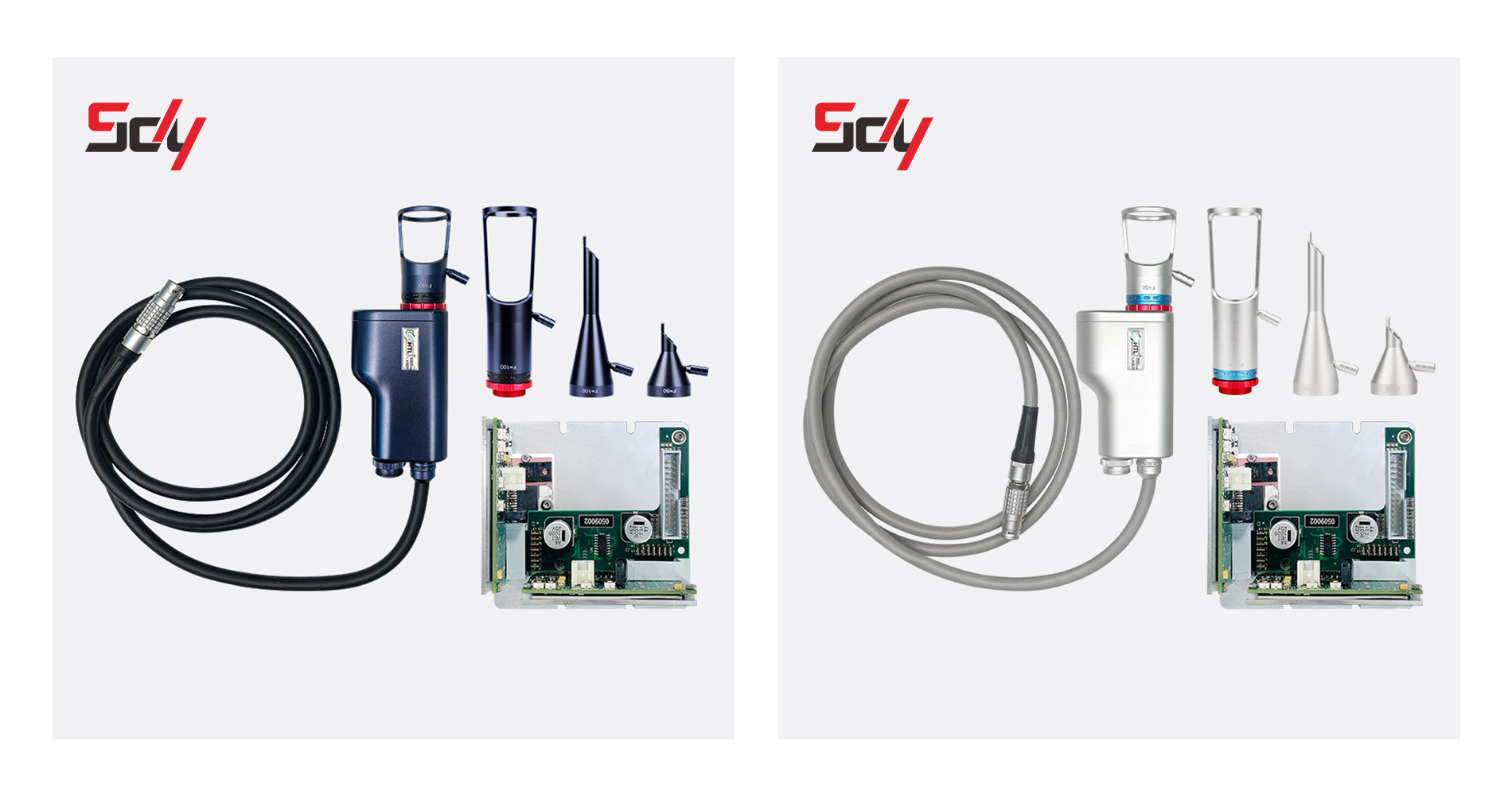

Shengdayu 3rd-Generation Medical Aesthetic Galvanometer Scanner – Now Available

In the field of medical aesthetic laser systems, the positioning accuracy and response speed of the galvanometer scanner directly determine the uniformity and safety of treatment outcomes. Shengdayu is proud to introduce its 3rd-Generation Medical Aesthetic Galvanometer Scanner – purpose-built for high-end dermatological and aesthetic laser platforms. Featuring 16-bit resolution, micro-radian-level repeatability, and millisecond fault response, this system delivers the precision, reliability, and efficiency that modern medical aesthetics demand.



Core Performance: 16-Bit Resolution, 4 µrad Repeatability – Uncompromising Accuracy, Every Time



Positioning accuracy is one of the most critical metrics in medical aesthetic laser equipment. The 3rd-generation galvanometer scanner features 16-bit resolution, combined with 4 µrad repeatability and 5.2 µrad static error, ensuring that every laser pulse lands exactly where it is intended – consistently, reliably, and precisely.



● 16-bit resolution – Delivers up to 65,536 discrete positioning steps, enabling finer scan trajectory control that meets the demanding path accuracy requirements of picosecond, fractional, and other advanced aesthetic laser treatments.

● 4 µrad repeatability – Maintains exceptional consistency in laser spot placement even under sustained high-duty-cycle operation, minimizing the risk of over-treatment, under-treatment, or uneven coverage.

● 5.2 µrad static error – Ultra-low static positioning deviation ensures precise zero-point and full-scale output control, giving clinicians dependable, repeatable feedback for every procedure.



Speed & Responsiveness: Millisecond Fault Detection for Smooth, Uninterrupted Treatments



System responsiveness directly impacts both treatment throughput and user experience. The 3rd-generation galvanometer scanner delivers outstanding speed performance across all key metrics:



● Power anomaly response time < 2 ms – The system detects and responds to power supply irregularities within 2 milliseconds, effectively protecting both the galvanometer and the laser source from voltage fluctuations.

● Position and motor fault response time < 30 ms – Real-time reporting for stall conditions, control timeouts, sensor errors, disconnection, impedance mismatch, amplitude drift, and center-point drift – all within 30 milliseconds. An integrated power-on self-test (POST) enables proactive maintenance and simplifies troubleshooting.

● Bus fault monitoring – Supports XY2-100 and XY3-100 communication protocols, with real-time fault status feedback to ensure stable, reliable link integrity.



Flexible Communication: Multi-Protocol Compatibility for Seamless Integration



The 3rd-generation galvanometer scanner offers extensive communication options to suit a wide range of control architectures:



● Protocol support – Fully compatible with XY2-100, XY2-100E, and XY3-100 protocols, ensuring broad interoperability with leading laser control systems.

● Communication interfaces – USB, TTL serial, RS485/RS422, with optional TCP/UDP network modules available for systems requiring Ethernet-based connectivity.



Wide-Voltage Power Supply & Thermal Management – Built for Demanding Environments



● Flexible power input – Accepts ±5V to ±25V DC input to accommodate a variety of power systems; typical operating voltage is ±15V.

● Efficient thermal dissipation – Static power consumption of 9.6W; requires a minimum heat-sink area of 1000 cm² or optional water-cooling for sustained high-load operation.

● Broad operating temperature range – 0°C to 60°C (operating), –50°C to 60°C (storage), ensuring reliable performance across diverse clinical environments.



Rigorous Quality Control – Built for Stability and Long-Term Reliability



● ESD withstand voltage – 1 kV, providing robust electrostatic discharge protection for reliable operation in low-humidity environments.

● Warm-up recommendation – A 30-minute warm-up period is recommended prior to use to achieve optimal thermal equilibrium, ensuring consistent accuracy throughout the treatment session.

● 24-hour thermal drift – ≤ 60 µrad bias offset over 24 hours of continuous operation, maintaining treatment consistency even during extended clinical sessions.



Partner with Shengdayu



Shengdayu is committed to delivering high-performance, high-reliability scanning solutions to medical laser equipment manufacturers worldwide. Whether you are developing next-generation aesthetic platforms or upgrading existing systems, our 3rd-generation galvanometer scanner is engineered to meet your most demanding requirements.

For detailed specifications, integration support, or to discuss your project needs, please contact us today.



Shengdayu – Precision You Can Trust, Performance That Delivers.
