Q-switched / Picosecond

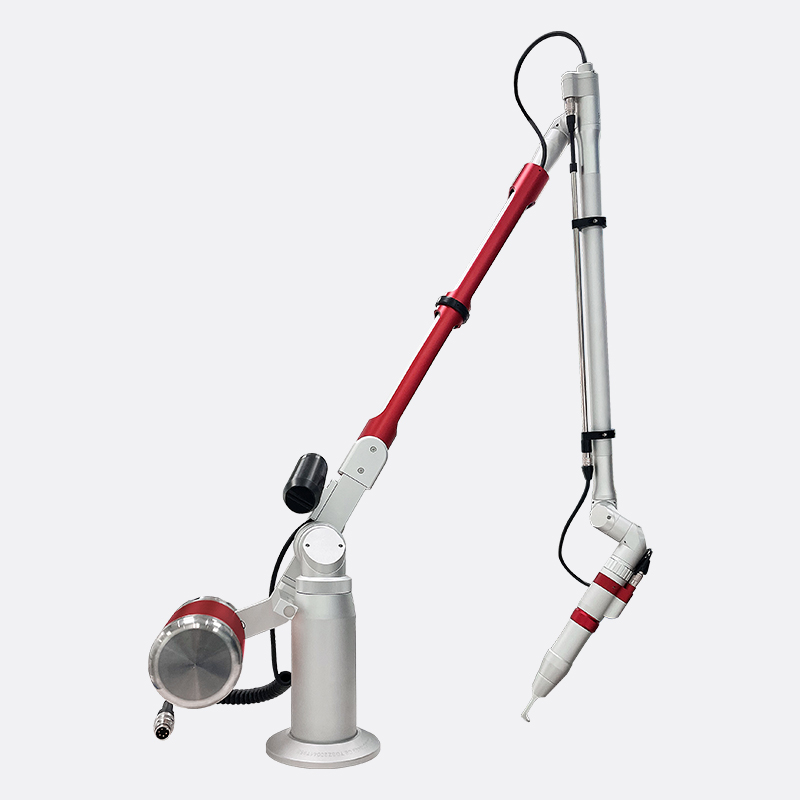

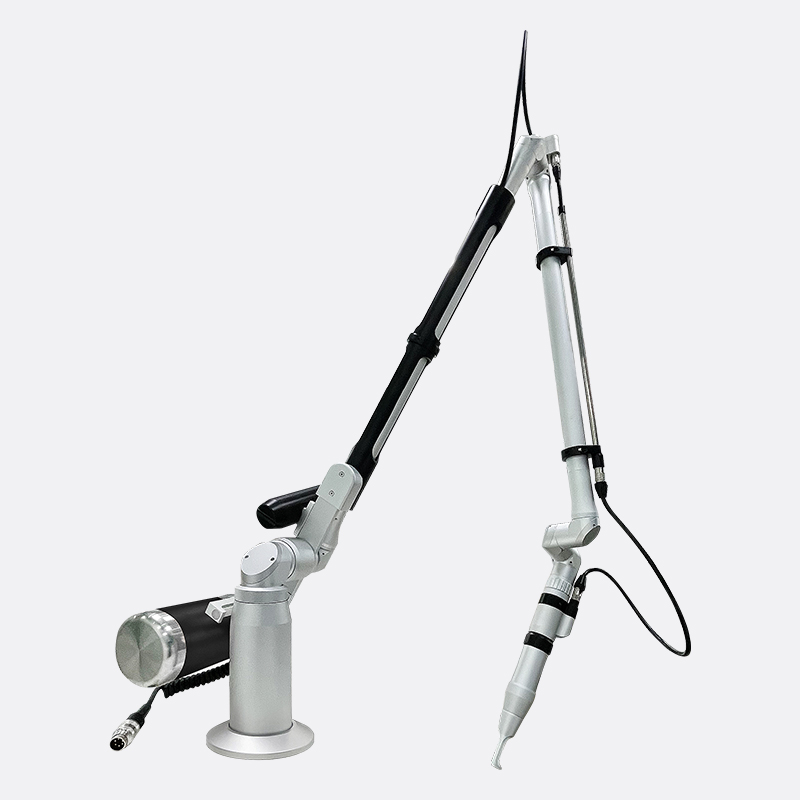

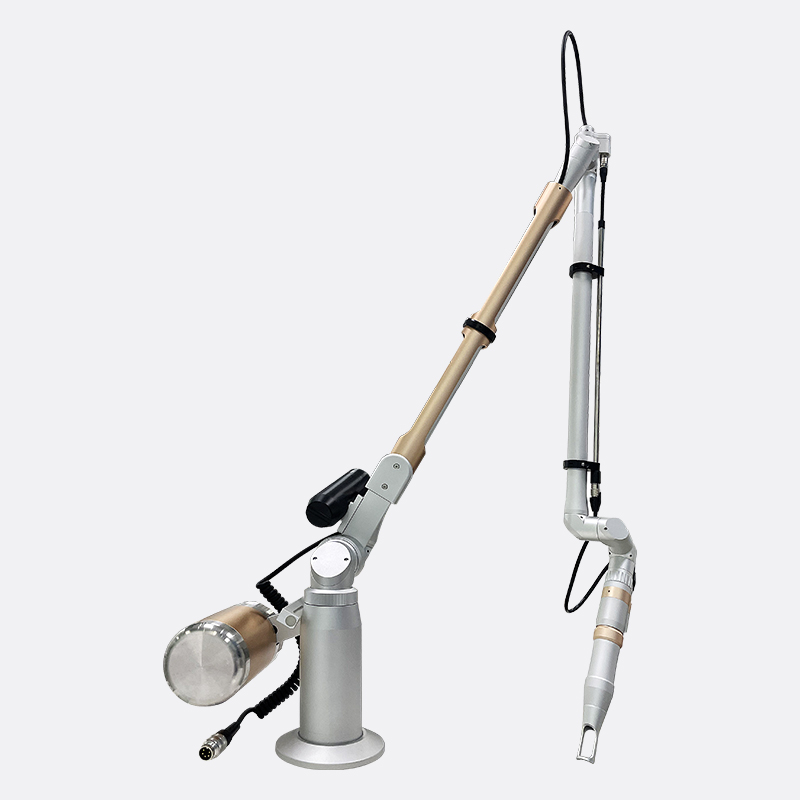

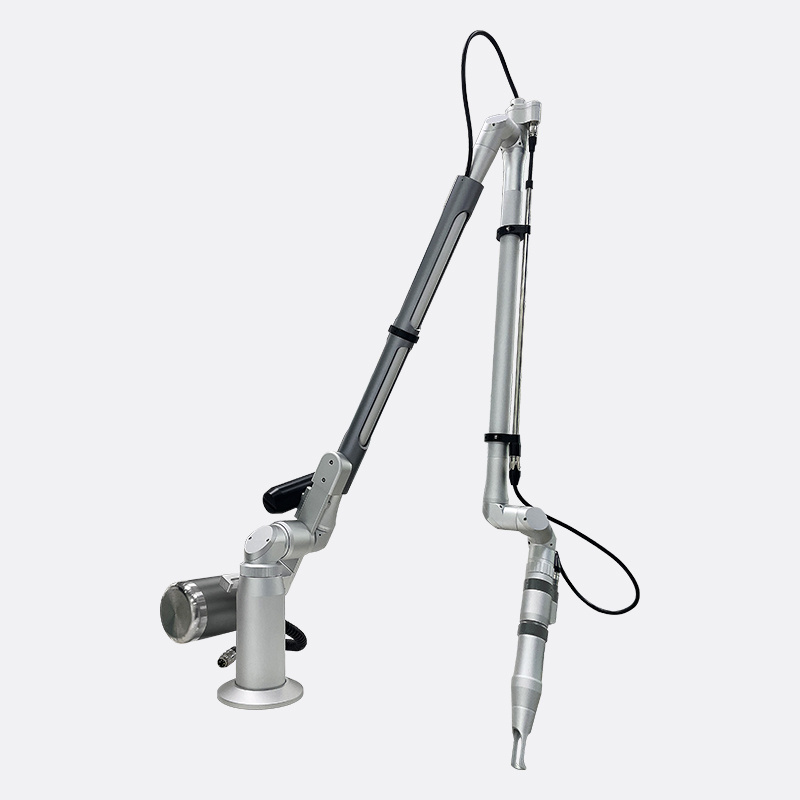

ND:YAG Articulated Arm

Front connector: Internal thread M22x1.5, Depth 10 mm

Extended length: 1462 mm (Excluding handpiece)

Wavelength: 1064 nm,532 nm

Beam deviation: ±0.5

Number of joints: 7

Mirror size: Φ25*3

Aperture diameter: 014 mm

Single mirror reflectivity: >99.5%@ 1064 nm,≥99.5%@532 nm

Spot size:2~10 mm

Transmission efficiency:>85%@ 1064 nm,

                                     >85%@ 532 nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 10.4 kg (Including package)

Package dimension:83*29*16 cm
