Q-switched / Picosecond

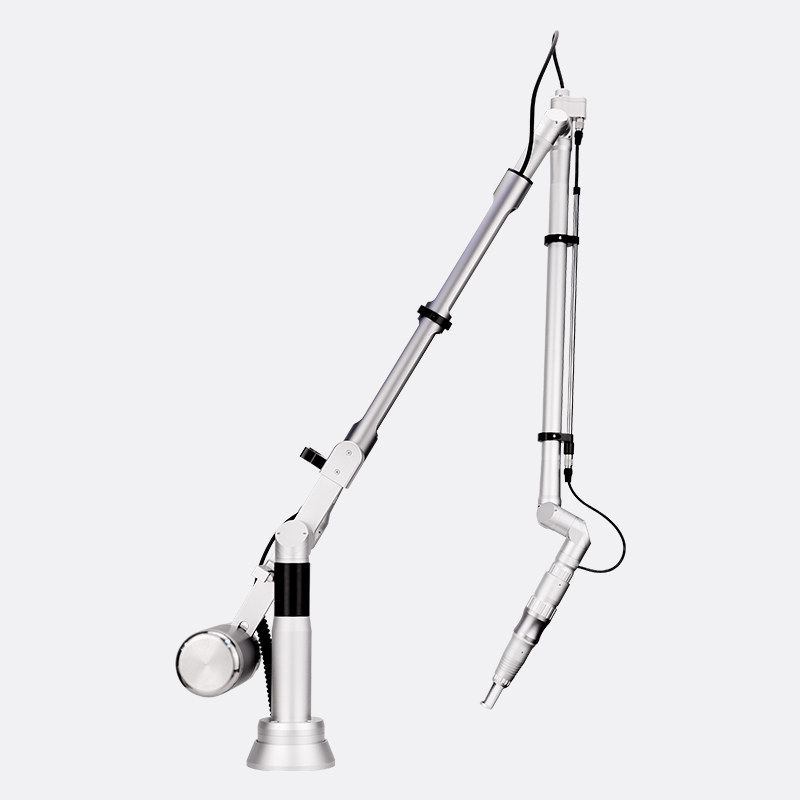

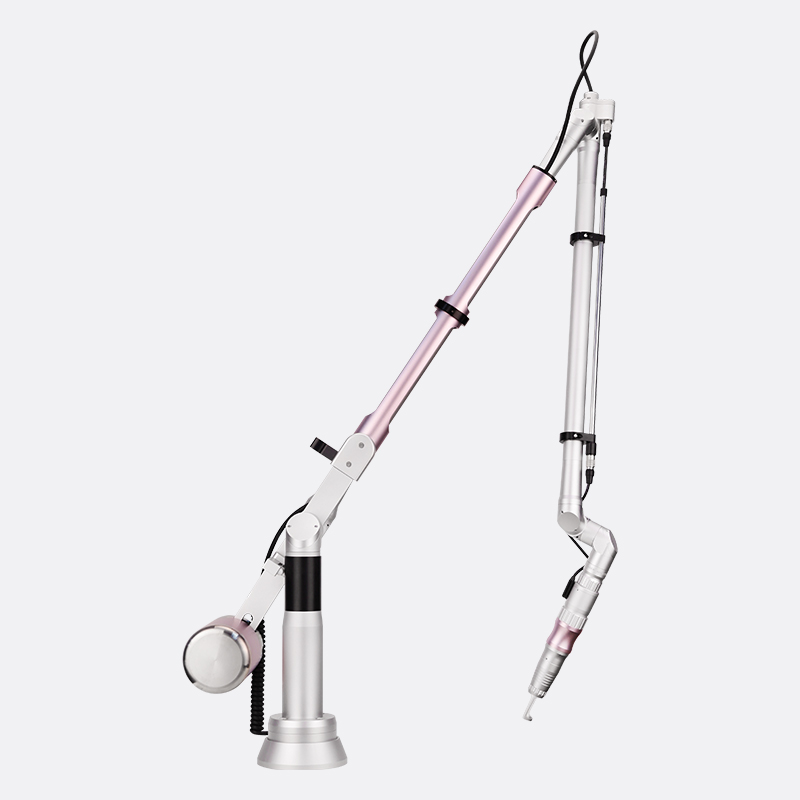

ND:YAG Articulated Arm

Front connector: Internal thread M22x1.5, Depth 10 mm

Extended length: 1670 mm (Excluding handpiece)

Wavelength: 1064 nm, 532 nm

Beam deviation: ±0.5

Number of joints: 7

Mirror size: Φ25*3.5

Aperture diameter: Φ15 mm

Single mirror reflectivity: ≥99.5%@ 1064 nm, ≥99.5%@532 nm

Spot size:2~10 mm

Transmission efficiency:≥85%@1064 nm,

                                      ≥85%@ 532 nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 10.7 kg (Including package)

Package dimension:104*36*14 cm
