Front connector: Internal thread M23x1.5, 4 - start thread

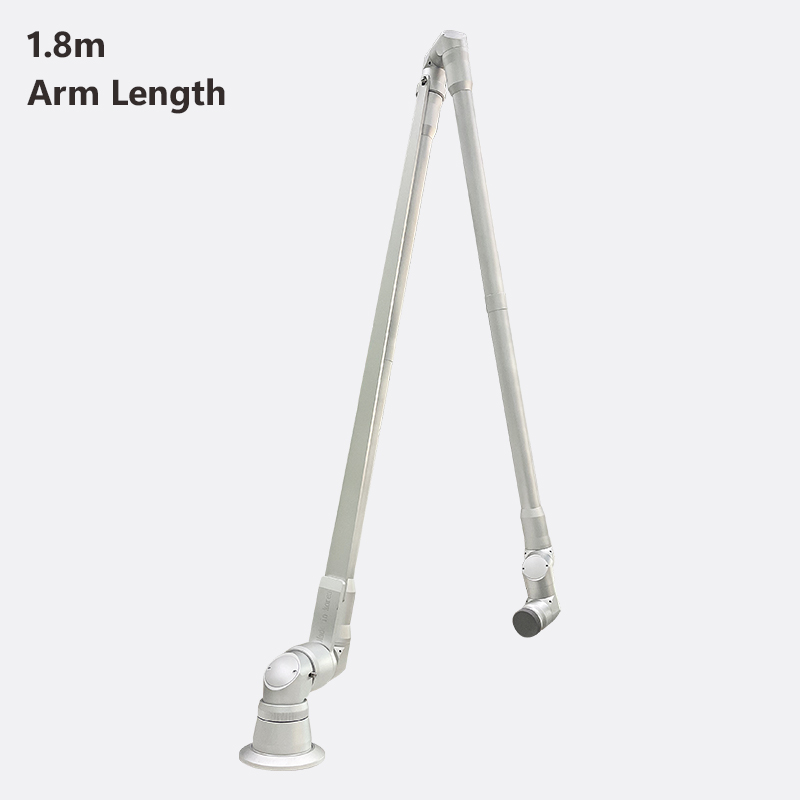

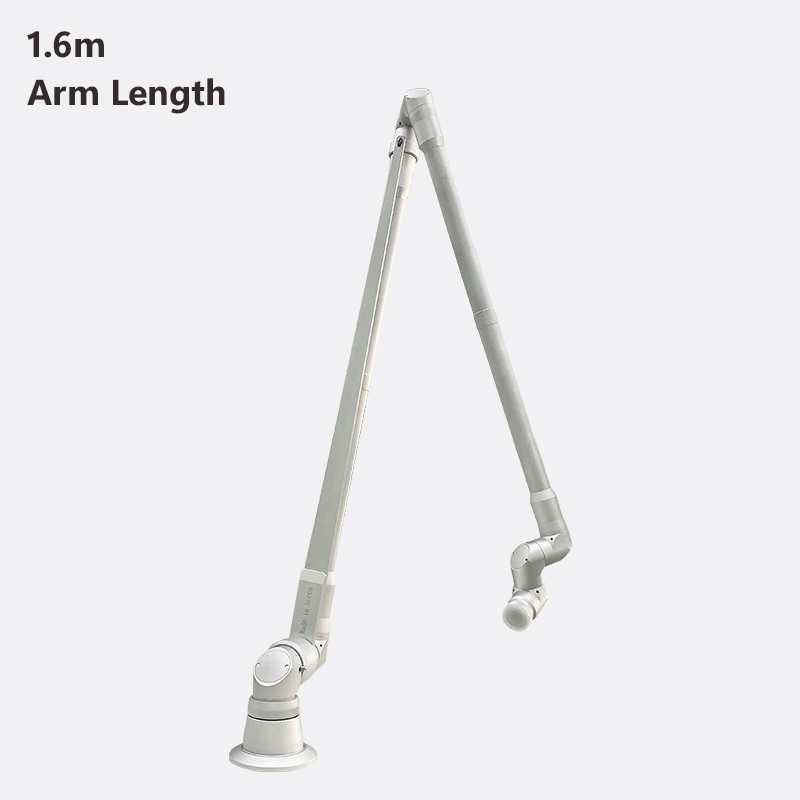

Extended length: 1.8 m / 1.6 m (Excluding handpiece)
Wavelength:532 nm
Beam deviation: ±0.7 mm
Number of joints: 7
Mirror size: Φ25*3
Aperture diameter: Φ14 mm
Single mirror reflectivity:>99.5% @527 nm~534 nm
Laser mirror damage Threshold: >5 J/cm² @ 527 nm, 150 ns, 1 kHz
>5 J/cm² @ 532 nm, 150 ns, 1 kHz
Transmission efficiency:>90%@527 nm~534 nm
Support type: Torsion spring type
Housing material: AL6063
Surface finish: Sandblasted & Anodized
Front connector: Internal thread M23x1.5, 4 - start thread
Extended length: 1.8 m / 1.6 m (Excluding handpiece)
Wavelength:532 nm
Beam deviation: ±0.7 mm
Number of joints: 7
Mirror size: Φ25*3
Aperture diameter: Φ14 mm
Single mirror reflectivity:>99.5% @527 nm~534 nm
Laser mirror damage Threshold: >5 J/cm² @ 527 nm, 150 ns, 1 kHz
>5 J/cm² @ 532 nm, 150 ns, 1 kHz
Transmission efficiency:>90%@527 nm~534 nm
Support type: Torsion spring type
Housing material: AL6063
Surface finish: Sandblasted & Anodized
Front connector: Internal thread M23x1.5, 4 - start thread
Extended length: 1.8 m / 1.6 m (Excluding handpiece)
Wavelength:532 nm
Beam deviation: ±0.7 mm
Number of joints: 7
Mirror size: Φ25*3
Aperture diameter: Φ14 mm
Single mirror reflectivity:>99.5% @527 nm~534 nm
Laser mirror damage Threshold: >5 J/cm² @ 527 nm, 150 ns, 1 kHz
>5 J/cm² @ 532 nm, 150 ns, 1 kHz
Transmission efficiency:>90%@527 nm~534 nm
Support type: Torsion spring type
Housing material: AL6063
Surface finish: Sandblasted & Anodized
