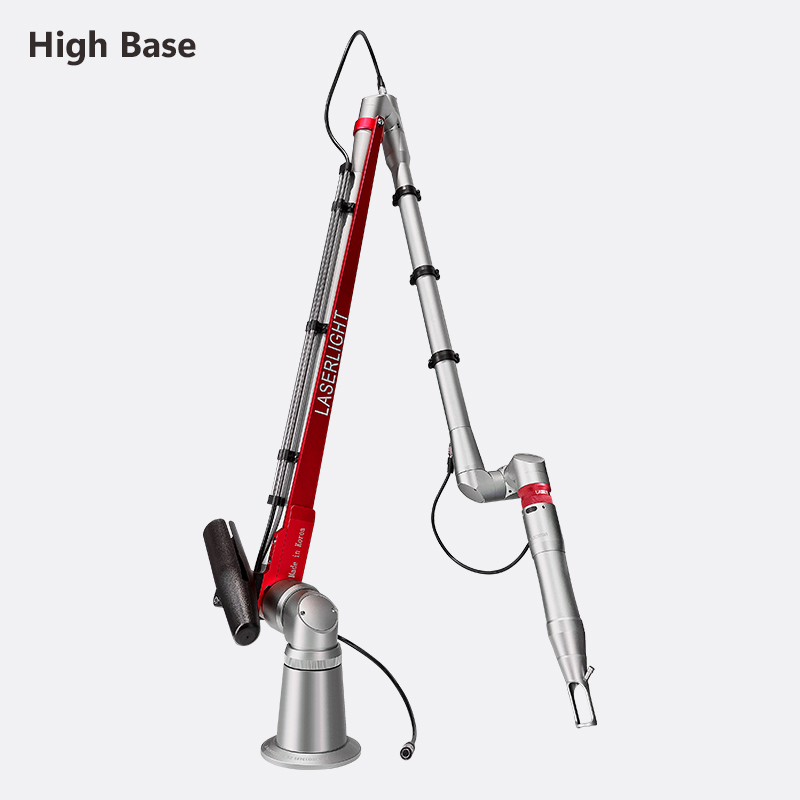

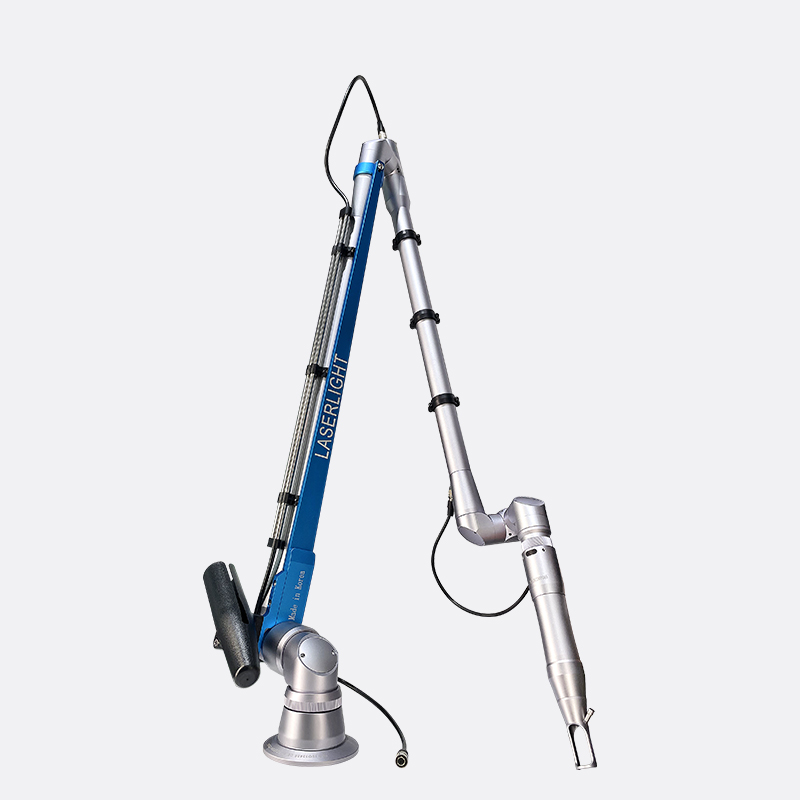

Q-switched/ Picosecond

ND:YAG Articulated Arm

Front connector: Internal thread M22x1.5,Depth 10 mm

Extended length: 1415 mm (Excluding handpiece)

Wavelength: 1064 nm,532 nm

Beam deviation: ±0.5

Number of joints: 7

Mirror size: Φ25*3

Aperture diameter: Φ14 mm

Single mirror reflectivity: >99.5%@1064 nm, ≥99.5%@532 nm

Spot size:2~10 mm

Transmission efficiency: >85%@1064 nm, >85%@532 nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 6.4 kg (Including package)

Package dimension:80*28*14 cm
