Q-switched / Picosecond

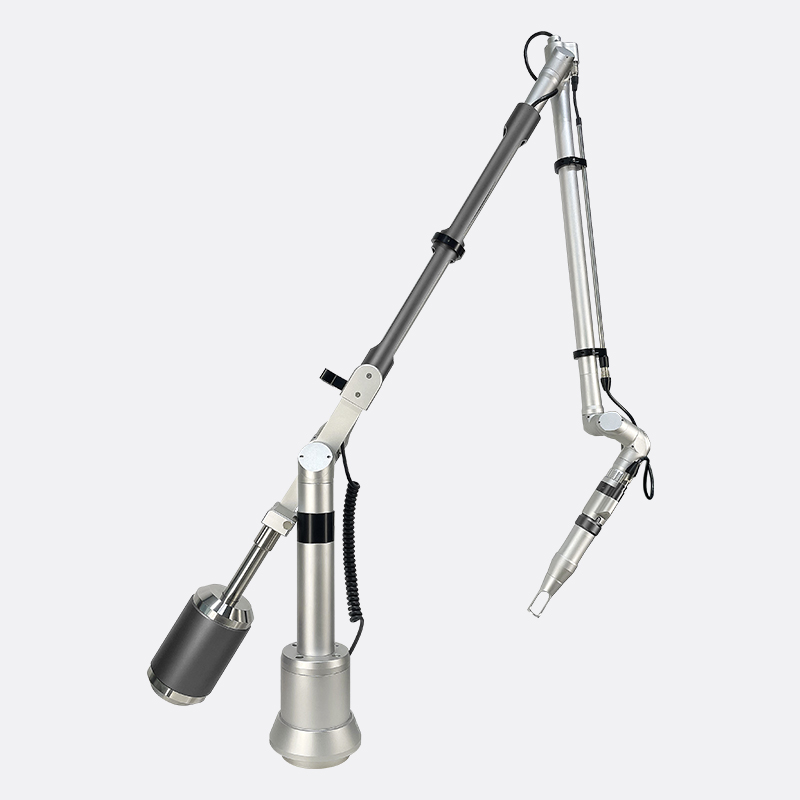

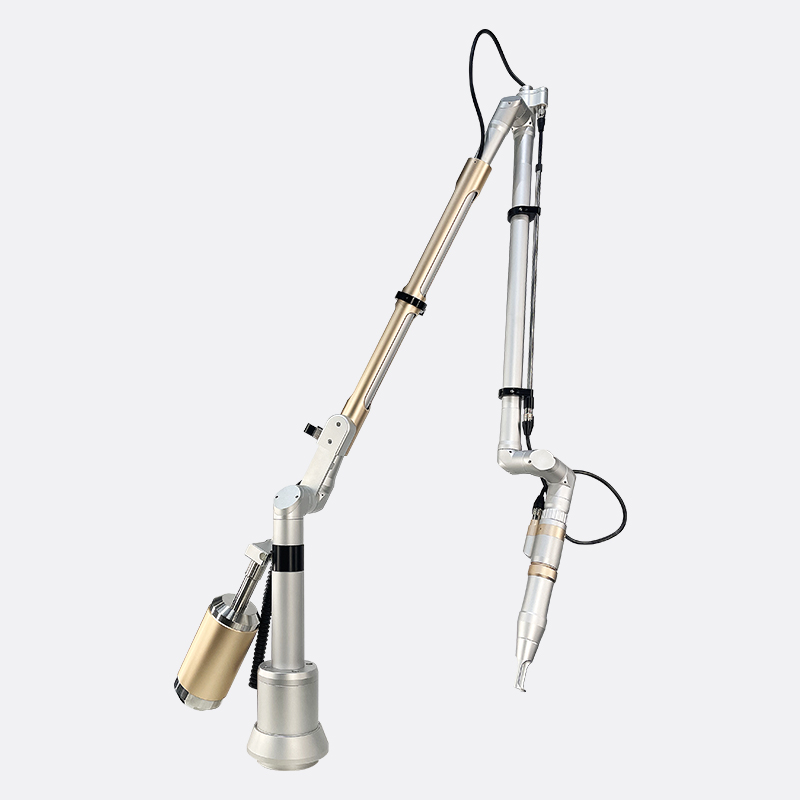

ND:YAG Articulated Arm

Front connector: Internal thread M22x1.5,Depth 10 mm

Extended length:1670 mm (Excluding handpiece)

Wavelength: 1064 nm, 532 nm

Beam deviation: ±0.5

Number of joints: 7

Mirror size: Φ25*3

Aperture diameter: Φ15 mm

Single mirror reflectivity: >99.5%@ 1064 nm, ≥99.5%@532 nm

Spot size: 2~10 mm

Transmission efficiency: >85%@ 1064 nm,

                                       >85%@ 532 nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 11.5 kg (Including package)

Package dimension:102*36*14 cm
