Q-switched / Picosecond

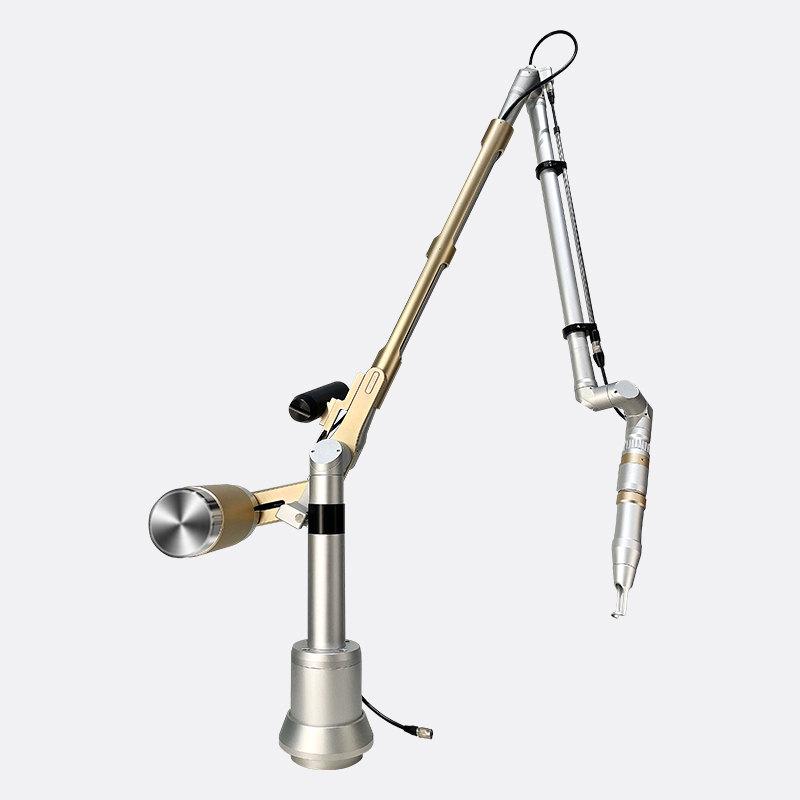

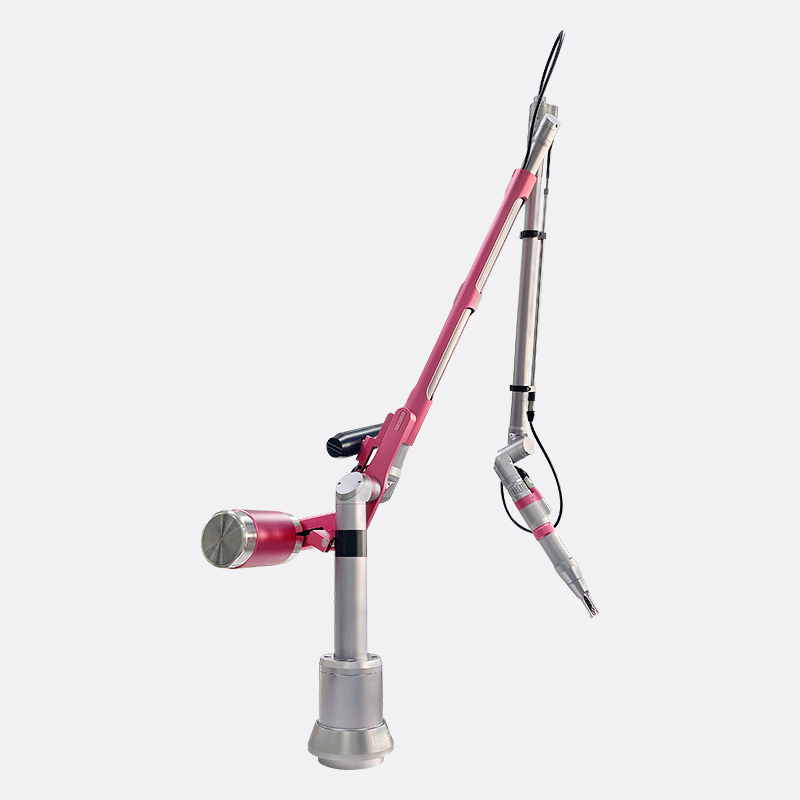

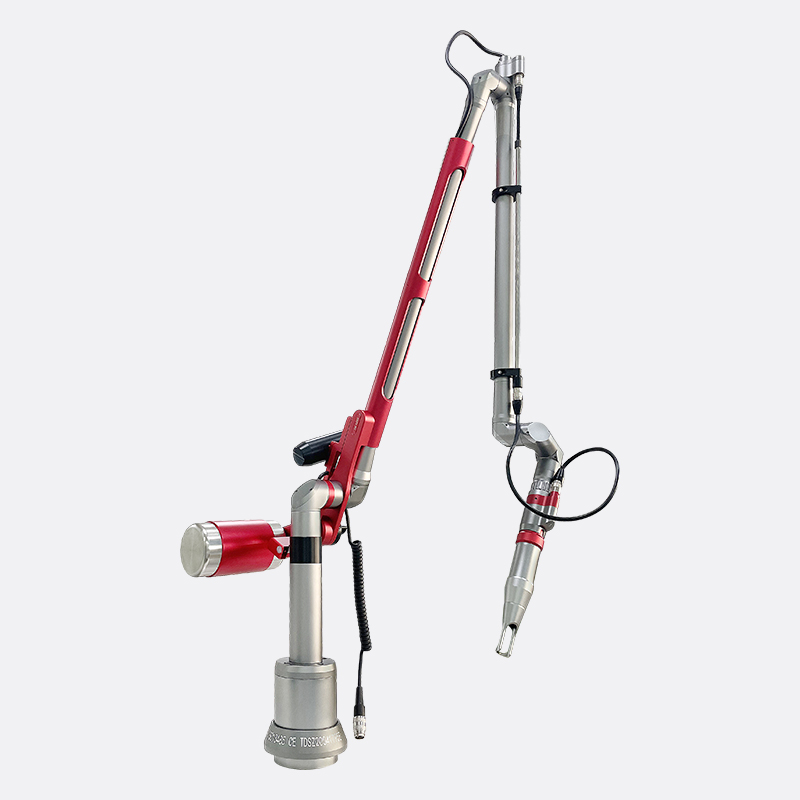

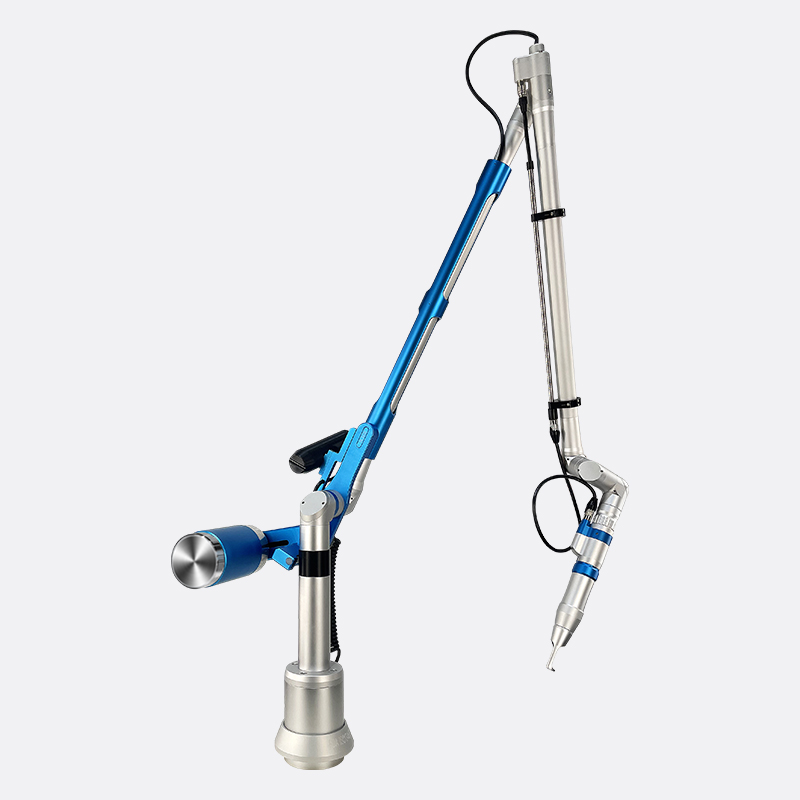

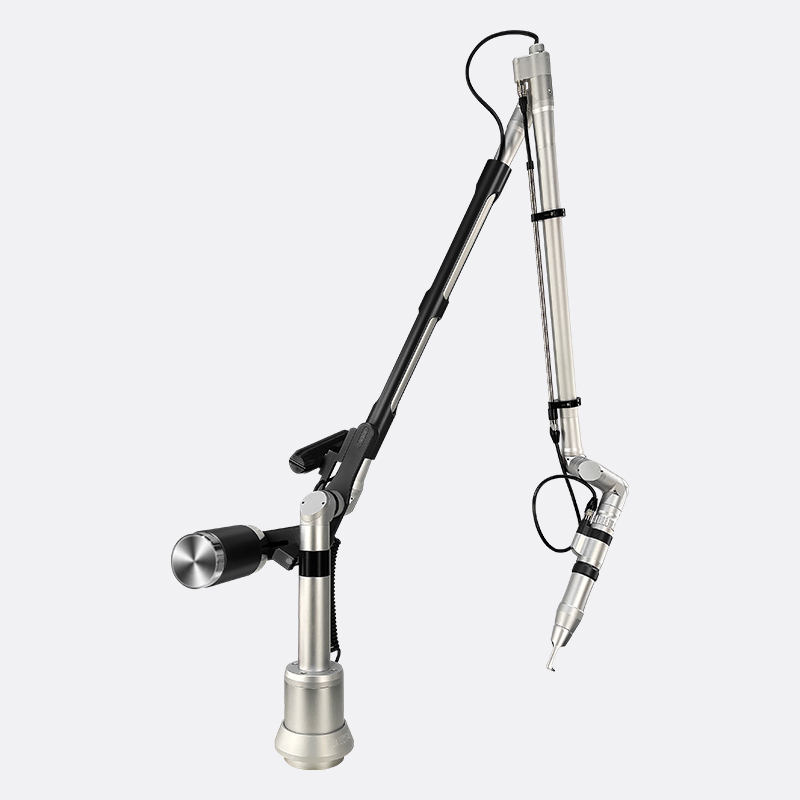

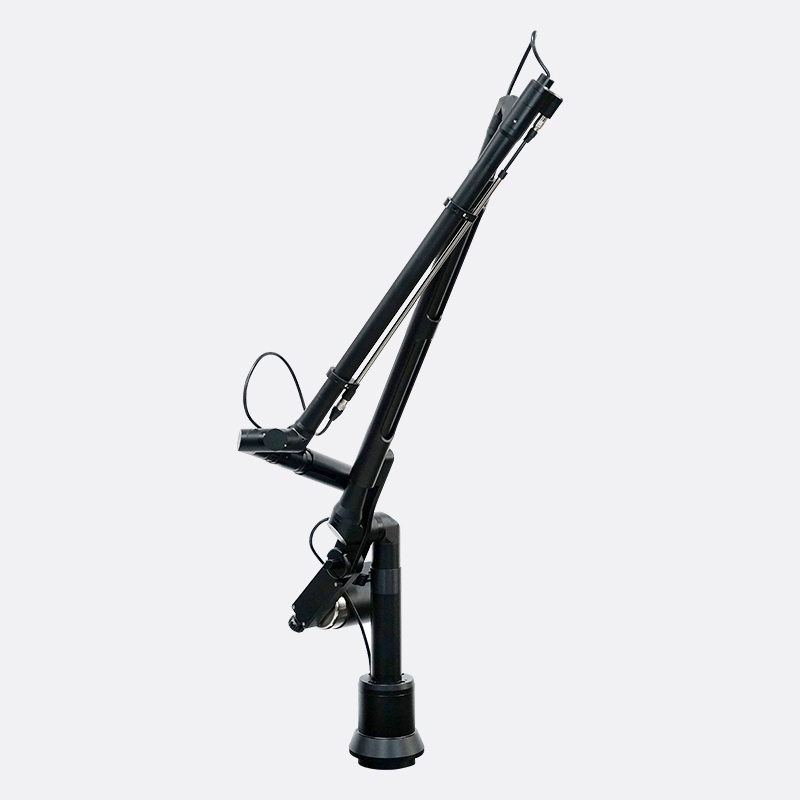

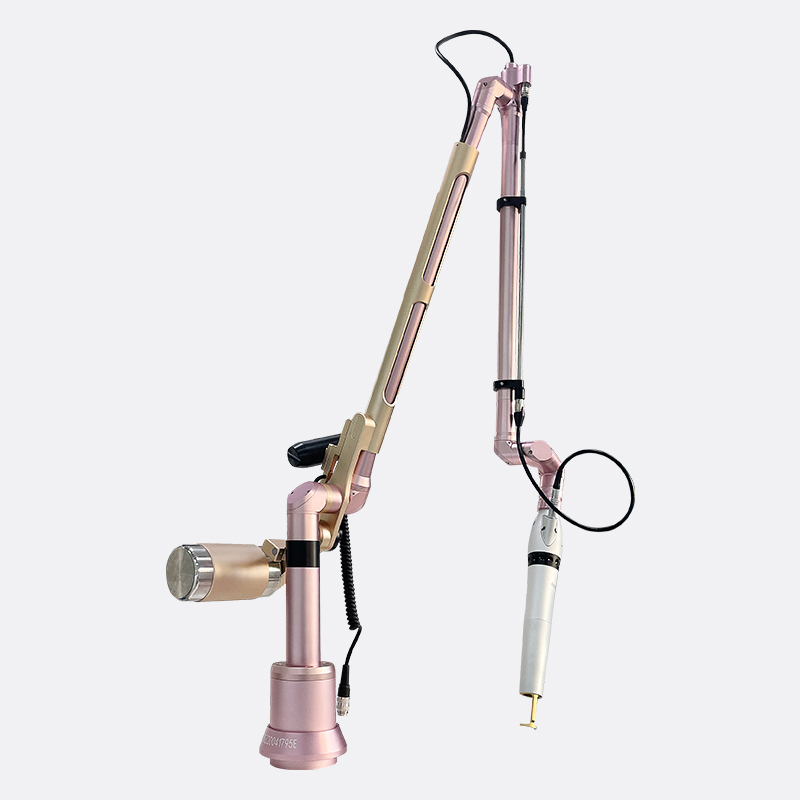

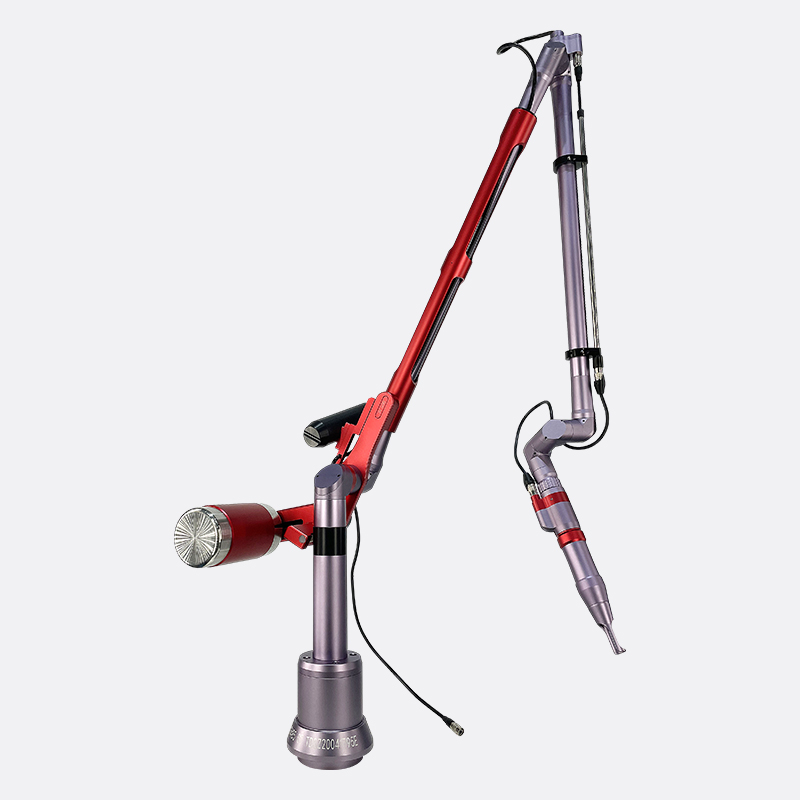

ND:YAG Articulated Arm

Front connector: Internal thread M22x1.5, Depth 10 mm

Extended length: 1670 mm (Excluding handpiece)

Wavelength:1064 nm,532 nm

Beam deviation: ±0.5

Number of joints:7

Mirror size: Φ25*3.5

Aperture diameter: Φ15 mm

Single mirror reflectivity: >99.5%@ 1064 nm,≥99.5%@532 nm

Spot size: 2~10 mm

Transmission efficiency: >85% @ 1064 nm,

                                       >85%@ 532 nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 11.59 kg (Including package)

Package dimension:104*36*14 cm
