Q-switched / Picosecond

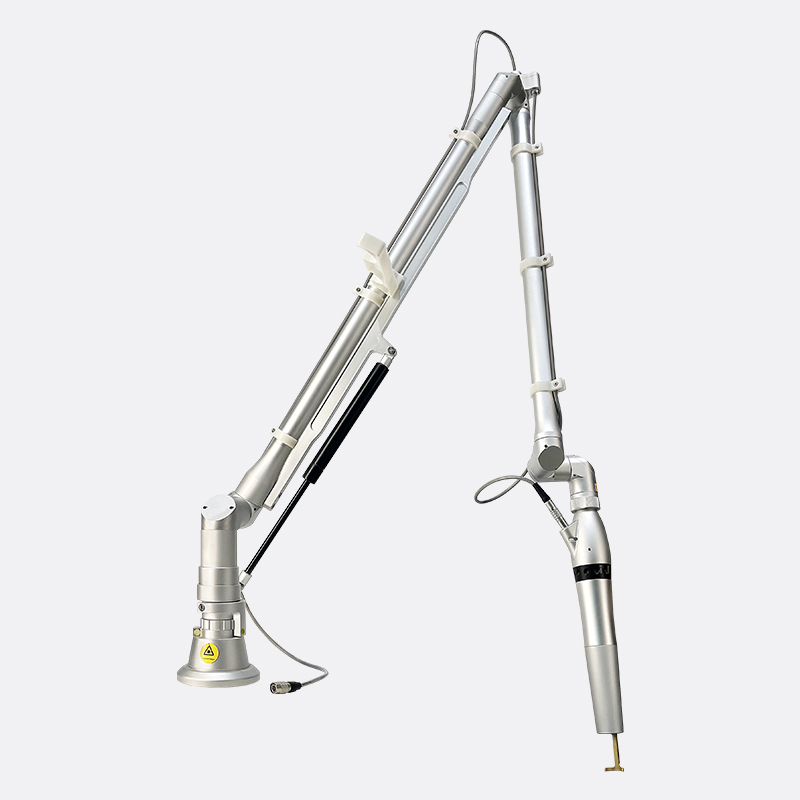

ND:YAG Articulated Arm

Front connector:Internal thread M22x1.5, Depth 10 mm

Extended length: 1495 mm (Excluding handpiece)

Wavelength:1064 nm,532 nm

Beam deviation:±0.5

Number of joints: 7

Mirror size: Φ25*3

Aperture diameter: Φ14 mm

Single mirror reflectivity: >99.5% @ 1064 nm, ≥99.5% @ 532 nm

Spot size:2~10 mm

Transmission efficiency: >85%@1064 nm, >85%@532nm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 6.82 kg (Including package)

Package dimension:92*26*15cm
