1000mJ Q-Switched Nanosecond Medical Aesthetic OEM Laser
  • 1000mJ Q-Switched Nanosecond Medical Aesthetic OEM Laser

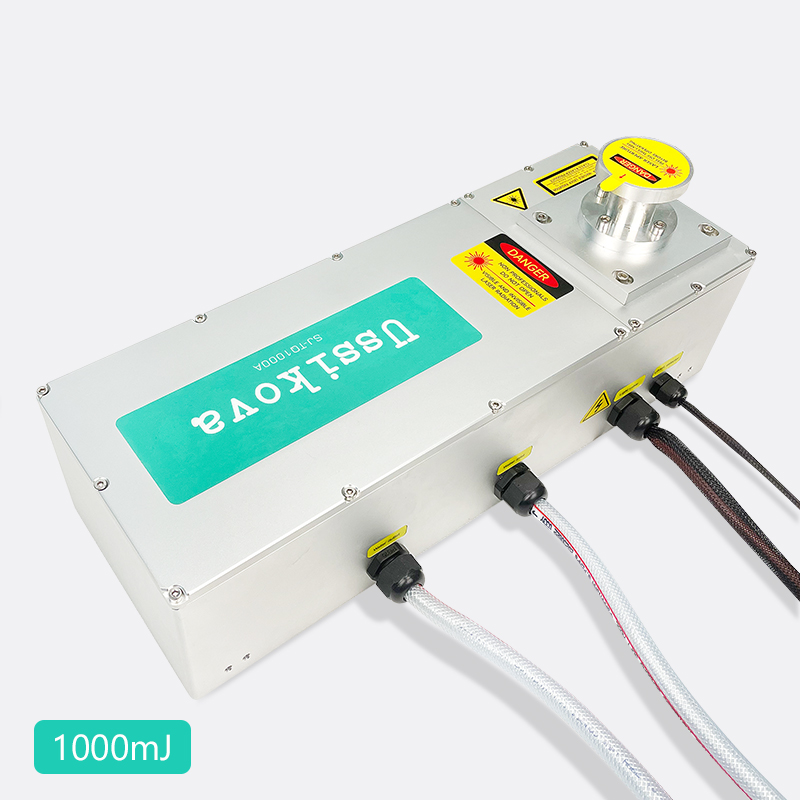

1000mJ Q-Switched Nanosecond Medical Aesthetic OEM Laser

The JS series laser adopts large-size,long-life single xenon lamp and high-efficiency dual Nd: YAG rod design, featuring homogenized optical coupling for flat-top beam output. Its optical system,water cooling and circuit systems adopt an integrated upper-lower layered molding structure, delivering excellent thermal stability, reliable operation, vibration resistance and long service life.

Wavelength: 1064 nm/532 nm

Output Energy: ≥ 1000 mJ@ 1064 nm, ≥ 500 mJ@ 532 nm

Energy Stability: ≤ 2% @ 1064 nm, ≤ 3% @ 532 nm

Operating Repetition Rate: 1-10 Hz

Pulse Width at Half Maximum: 6-8 ns @ 1064 nm

Divergence Angle: 4 mrad

Beam Spatial Profile: Flat-top Beam

Beam Spot Diameter: ~9mm

Operating Conditions: Temperature 20-35 °C, Relative Humidity<60%

Beam Quality: Flat-top Uniform Beam Spot

Overall Dimensions: 467 *211*11.5 mm

Net Weight: 11.5 kg
