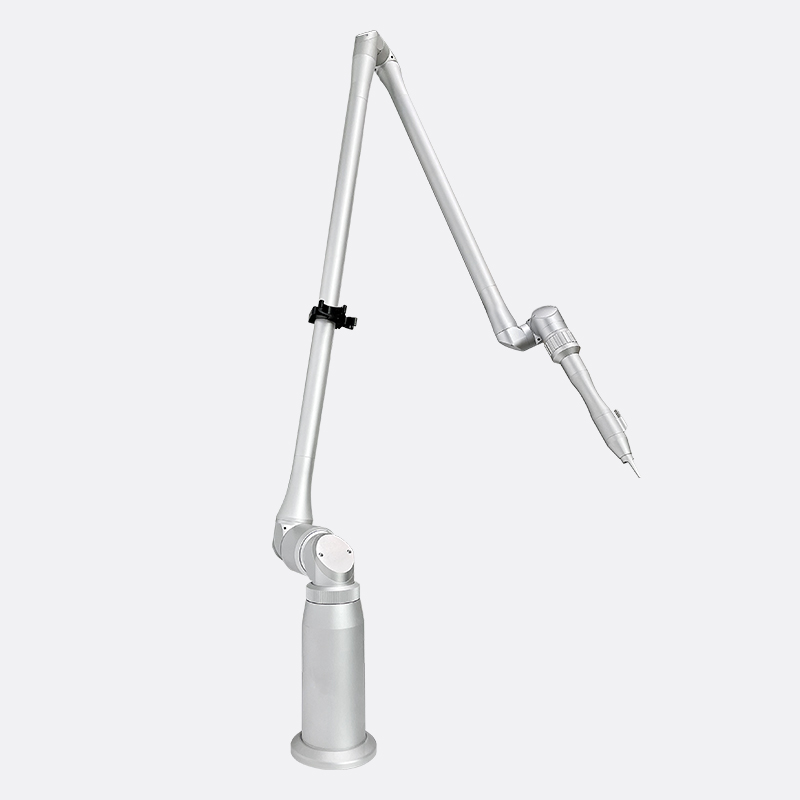

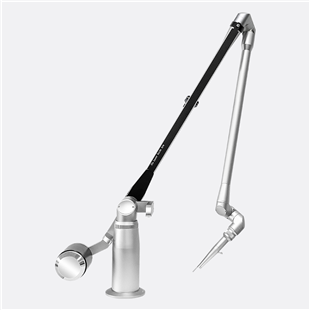

CO2 Articulated Arms

Front connector: Internal thread M17x0.75, Depth 6 mm/

M22x1.5,Depth 10 mm

Extended length: 1448 mm (Excluding handpiece)

Wavelength: 10.6 μm,650 nm

Beam deviation:±0.7

Number of joints:7

Mirror size: Φ25*3, Φ20*3

Aperture diameter: Φ12 mm

Single mirror reflectivity: >99.5% @10.6 μm

Cutting head focal length:F=100 mm

Transmission efficiency: >85% @ 10.6 μm

Housing material: AL6063

Surface finish: Sandblasted & Anodized

Gross weight: 5.02 kg (Including package)

Package dimension: 72*24*12 cm
