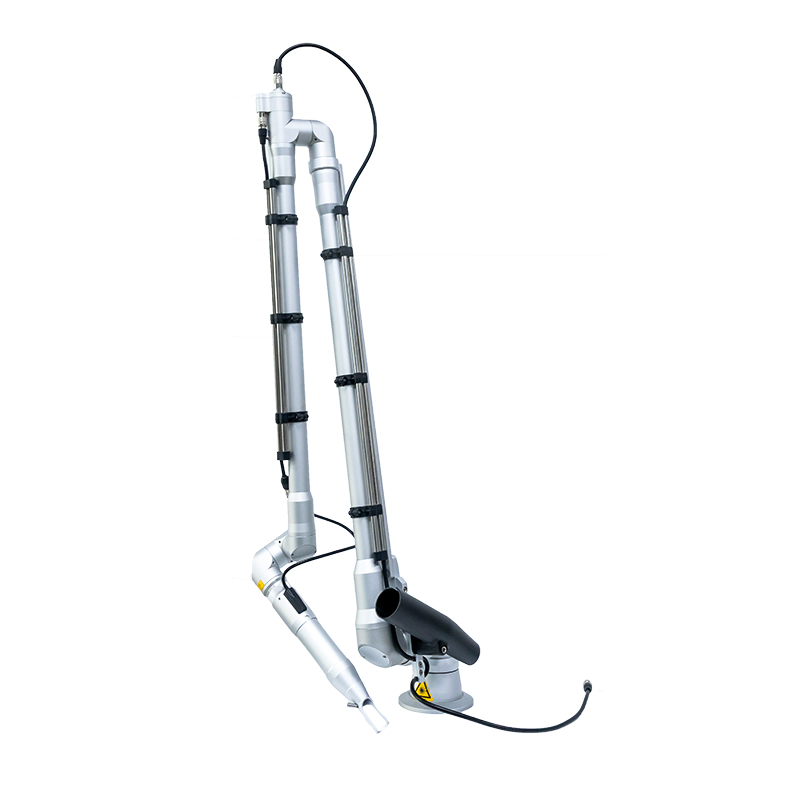

| YAG导光臂系列 | ||||
|
产品型号 Product model |
A款 | B款 | C款 | D款 |
|
通光孔径 Through aperture |
Φ16mm | Φ16mm | Φ16mm | Φ16mm |
|
臂展 Maximum spread arm length |
1.6M | 1.6M | 1.6M | 1.6M |
|
关节数 Number of joints |
7关节 Seven joints |
7关节 Seven joints |
7关节 Seven joints |
7关节 Seven joints |
|
重量 Weight |
6.54kg | 7.04kg | 10.58kg | 6.93kg |
|
反射镜反射率 Reflector reflectivity |
＞99.6% | |||
|
反射波长 Reflection wavelength |
可支持波长532、1030、1064、755、785、1550、2940、10600…… Can support wavelengths 532, 1030, 1064, 755, 785, 1550, 2940, 10600 |
|||
|
损伤阈值 Damage threshold |
＞6J/cm2 | |||
|
材料 Material |
外部6063铝合金，内部SUS304不锈钢 External 6063 aluminum alloy, internal SUS304 stainless steel |
|||
|
轴承 Bearing |
均采用进口NSK轴承 Imported NSK bearings are adopted |
|||
|
光斑偏差 Spot deviation |
±0.6MM | |||
|
外观 Appearance |
喷砂处理，可支持客户要求定制外观颜色 Can support customer requests for customized appearance colors |
|||
|
备注：（重量含包装箱），如有参数/规格变化另行通知修改 （Weight includes packing), If there is any change in the parameter specification, we will notify you to modify it |
||||
